Plugins
Fix Horrible
Combing everything (Type-A) / (Type-B):
This expert option adds all parts of the model together. The result is usually that internal cavities disappear. Type-A is dependent on the
model. Type-B ignores all internal holes and only keeps the outside shape per layer. Keep open faces: This option keeps all the open
bits of the model intact. Normally thinkFAB tries to stitch up small holes and remove everything with big holes but this option keeps bits that are not properly part of anything and just goes with whatever it is enable you to slice models. Extensive stitching: Extensive stitching tries to
fix up open holes in the model by closing the hole with touching polygons. This algorithm is quite expensive and introduces a lot of

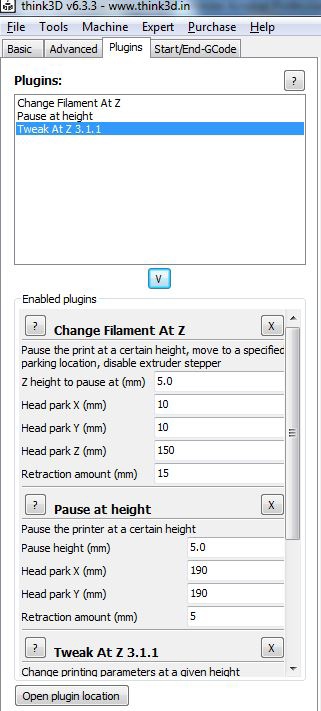

processing time. As with all “Fix horrible” options, use this at your own risk. We supply 3 plugins to you. These 3 plugins
will help to give stronger control feature. You can set different parameter with different print heights to have more accurate model.
Double-click certain plugin name to start using it. After starting it, you can set parameter in
below setting interface. If you want to cancel this plugin, click “X” on
the right top of parameter setting interface. Change Filament At Z: You can change the
filament in the printing process at a certain height of the print. Pause at height: You can pause printing at a
certain height of the print, and you can precisely locate the print head position. Tweak At Z: You can reset the printing
parameters at a certain height of the print; this is a powerful option for experts. You can reset printing speed, flow, bed temperature, nozzle temperature and fan speed.
